Model
|
Gloria-SC-N |
|
Cut-in wavelength1) |
420nm |
|
Total power
|
7W |
|
Total visible power
(350-850 nm)
|
1.1W |
|

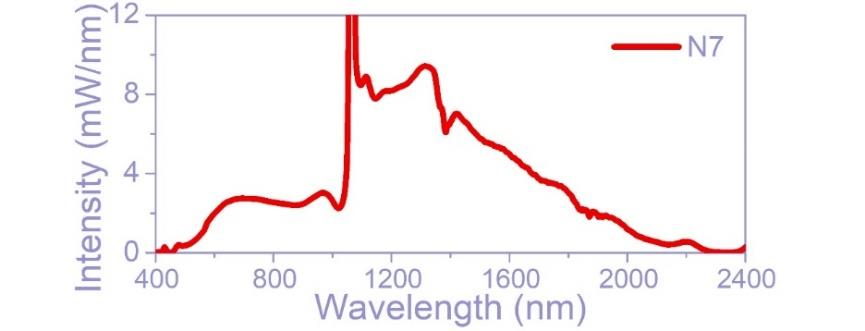

Spectral range
|
420-2300nm |
|
Power stability
|
<0.5% (RMS)
|
|
Variable repetition rate
|
100 kHz-1 MHz
|
|
Beam quality
|
M2<1.1 |
|
Polarization
|
Random
|

|
Model
|
Gloria-SC-N |
|
Length of output fiber
|
1.5m |
|
Synchronous output signal
|
BNC; TTL voltage level
|
|
Operation Voltage
|
100-240 V; 50/60 Hz
|
|
Power consumption
|
< 120 W
|
|
Dimension((W?H?L))
|
387×301×100 mm |
|
Weight
|
11 kg
|
